Lumenier MX2206-9 2450KV Brushless Motor - RC Papa

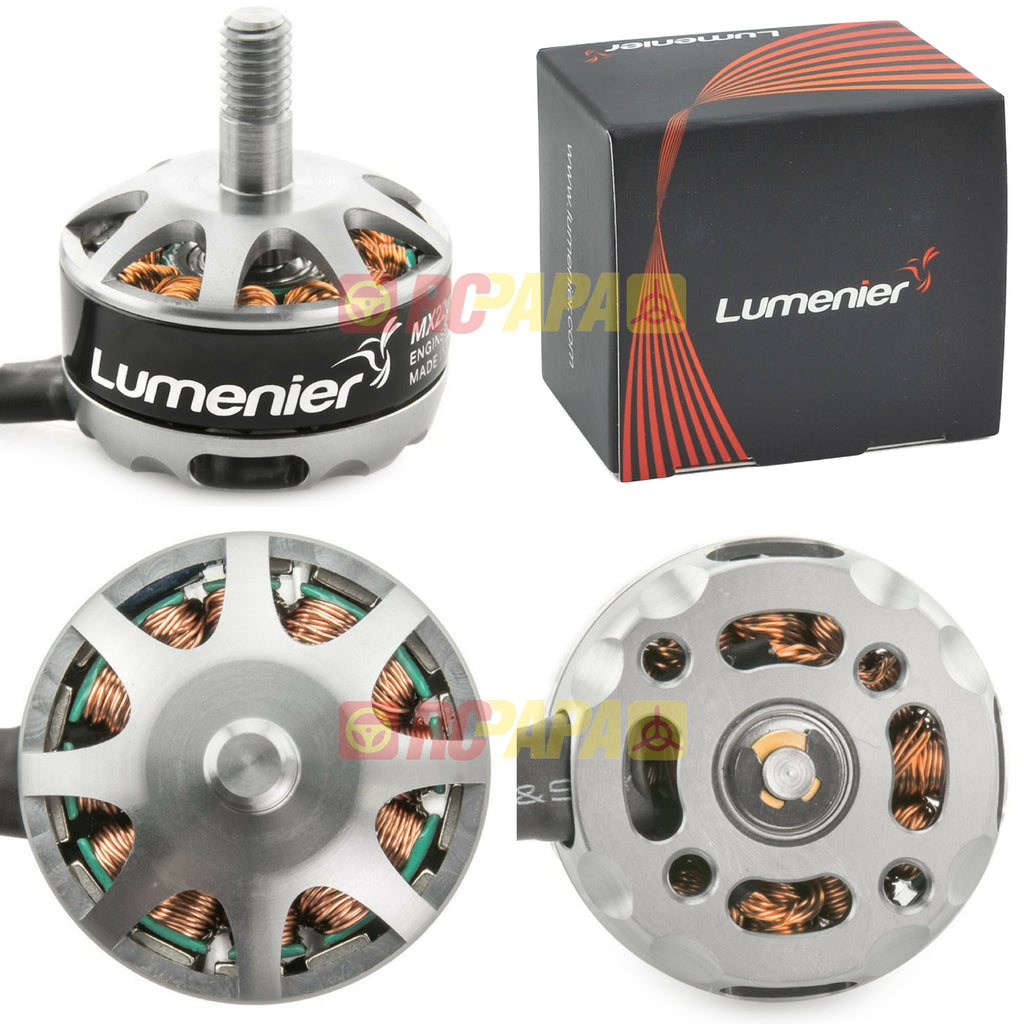

Lumenier MX2206-9 2450KV Brushless Motor


Package Includes
1x Lumenier MX2206-9 2450Kv Motor
1x Lumenier M5 Black Aluminum Low Profile Lock Nut (CW)
4x M3x5 Button head screws

Summary

This is the new Lumenier MX series of multirotor motors. This motor has been designed to provide maximum power and thrust in a small and lightweight package. The MX motors use a more powerful stator in combination with N52SH magnets and very small air gap, resulting in incredible power and performance.

Designed to provide top power during drone racing and a KV of 2450kv the MX2206 steps up the kv rating compared to the RX2206 2350kv motors that are so popular with acrobatic pilots. The new MX2206 motors come in at 28g continuing Lumenier's tradition of creating some of the lightest racing motors on the market.

Carefully assembled and dynamically balanced to the highest standard in Lumenier's climate controlled facility, the new Lumenier MX2206 motors deploy new glue technology, application robots for even glue distribution, and advanced curing procedures to ensure magnets won't slip -- even under the tremendous demands put on them during drone racing and FPV freestyle events.

Spec :
Kv 2450
Configuration 12N14P
Windings 9 turn DLRK
Termination D (Delta)
Stator Diameter 22mm
Shaft Diameter 3mm
Motor Dimension 27x18mm
Weight 28g (with wires)
Idle Current @12.6v (Io) 0.76 A
Cells (LiPo) 2-4S
Max Continuous Current (A) 60s 22A
Max Burst Current <10s 32A
Max Continuous Power (W) 60s 320W
Max Efficiency Current (2.2-6A) 80%
Internal Resistance (Rm) 240mΩ
Motor Wire Length 100mm
Motor Connection Bare Wire
