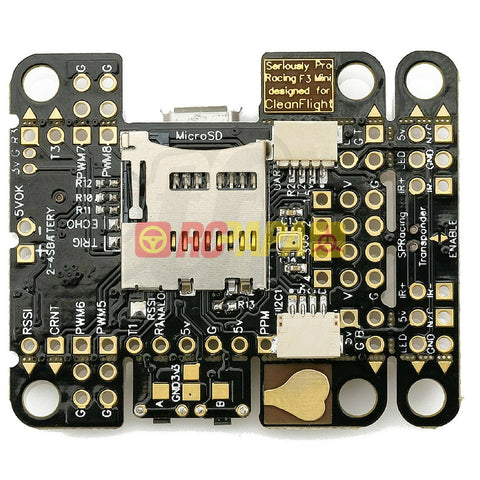

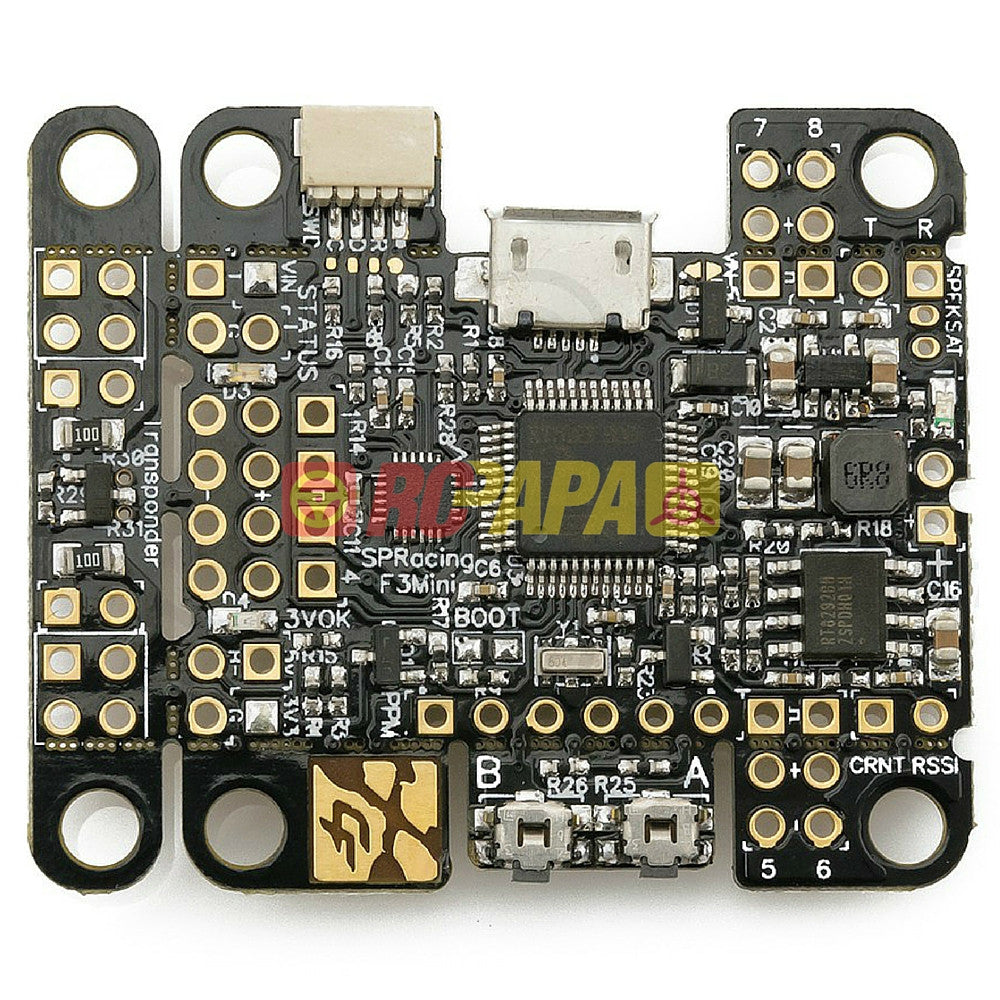

Seriously Pro SPRacingF3 Mini Flight Controller

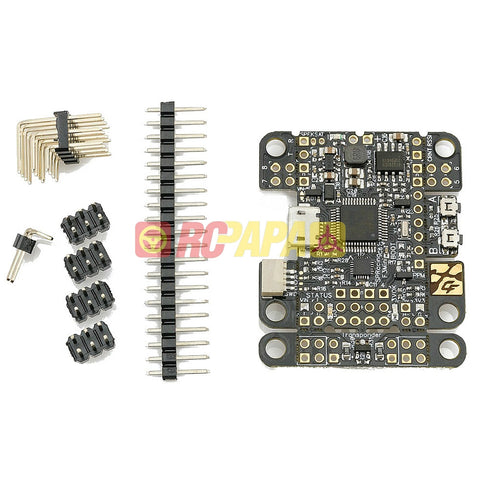

Package Includes

SPRacing F3 Mini Flight Controller

Transponder LEDs and Code

MicroSD card socket and pin headers

Summary

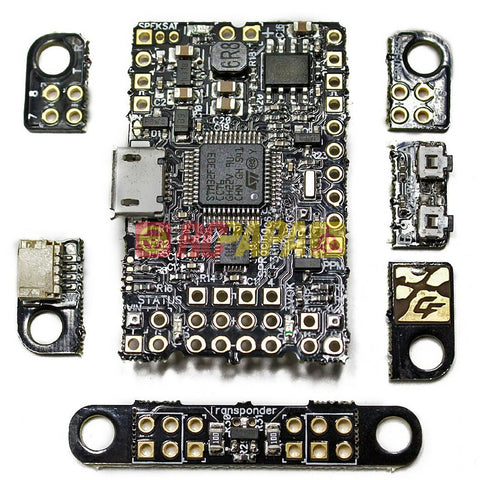

The Seriously Pro Racing F3 Mini Flight Controller (SPRacingF3Mini) was designed to give awesome flight performance in a tiny race-ready package. It has the latest sensors, race timing and logging technology in a flexible form factor and also features a built-in voltage regulator (BEC). Includes built in Accelerometer, Gyro, Compass & Barometer Sensors; Transponder LEDs and Code; MicroSD card socket and pin headers.

Download Manual here

Specifications

The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards and to set the benchmark for a fully-featured STM32F3-based mini board.

36x36mm board with 30.5mm mounting holes
Weight ~6 grams
STM32F303 CPU, 72Mhz inc FPU
MicroSD card slot (SD/SDHC, upto 32GB)
MPU9250 accelerometer/gyro/compass
BMP280 barometer (Deluxe only)
5V regulator for powering recevier and small servos
2 Push Buttons
2 IR LEDs and unique code for race transponder
MicroUSB socket
Copper-etched Cleanflight and #RB logos
1x 2pin though-holes for pin headers for Direct Connection of 2-5S Battery (25V Max)
8x 3pin though-holes for pin headers for ESC/Servo connections
1x 2pin though-holes for pin headers for UART3
1x 6pin though-holes for pin headers for UART1 and PPM (for standard SerialRX/SBus/PPM lead)
1x 3pin though-holes for pin headers for Telemetry/LED Strip
1x 3pin though-holes for pin headers for Buzzer output
1x 2pin though-holes for pin headers for RSSI and battery current monitoring
1x 3pin though-holes for JST-ZH socket for Spektrum Satellite receivers.
1x 4pin bottom mounted, recessed JST-SH socket for I2C
1x 4pin bottom mounted, recessed JST-SH socket for UART2
1x 4pin top mounted JST-SH socket for SWD debugging
2x bottom mounted solder pads for sonar
