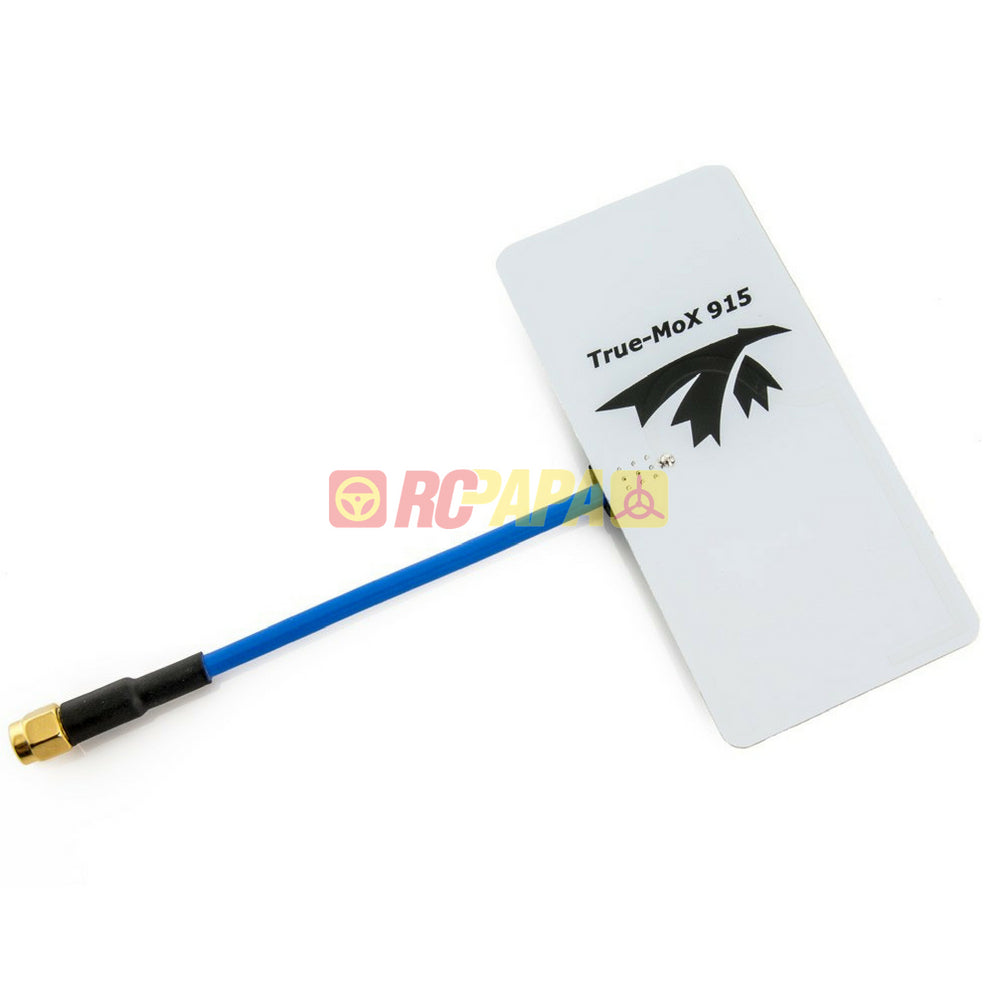

TrueRC True-Mox 915 Antenna


The True-MoX 915 is TrueRC's revision of the Moxon using latest 3D electromagnetic simulation tools and RF rated PCB material. Interactions with radio or pilot’s body are kept at near zero thanks to their patent pending design. This is the perfect radio antenna for TBS Crossfire. or FRsky R9M. Note that this is not a patch, do not point the flat part toward the target. Point the long edge of the white panel toward the intended flight area. Having the long edge vertical produce vertical polarization

Specifications
Frequencies: 902-925MHz
Gain:5.4dBi
Beam width*: 156deg
Beam width @-3dB**: 133deg
Connector: SMA
Dimensions: 103mm x 165mm

* Coverage where reception is at least equivalent to an Omni.
** Coverage where at least 70% of the max range is obtained.
