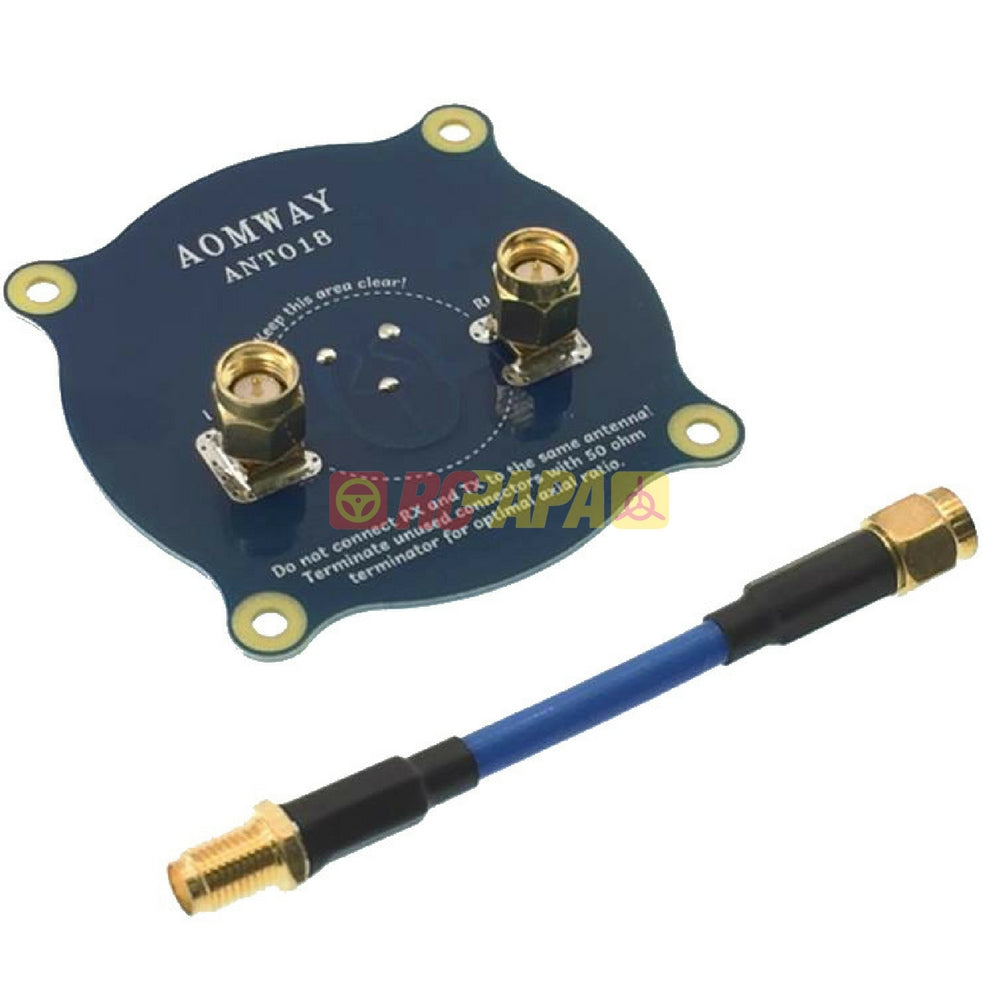

Aomway 5.8G 8dBi ANT018 Pagoda Antenna (RHCP/LHCP SMA Male) - RC Papa

Aomway 5.8G 8dBi ANT018 Pagoda Antenna (RHCP/LHCP SMA Male)


Package included
1x Aomway 5.8G 8dBi ANT018 Pagoda Antenna

Specifications:
Center frequency: 5.8 GHz
Bandwidth: 700 MHz (5.3– 6 GHz)
Matching: S11 < -20 dB,
VSWR < 1.5 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 8 dBi
Half power beam width: 55° (horizontal and vertical)
Radiation efficiency: 83.5%
Extension cable length:80mm
Size: 60*60*22mm
Weight :15g
