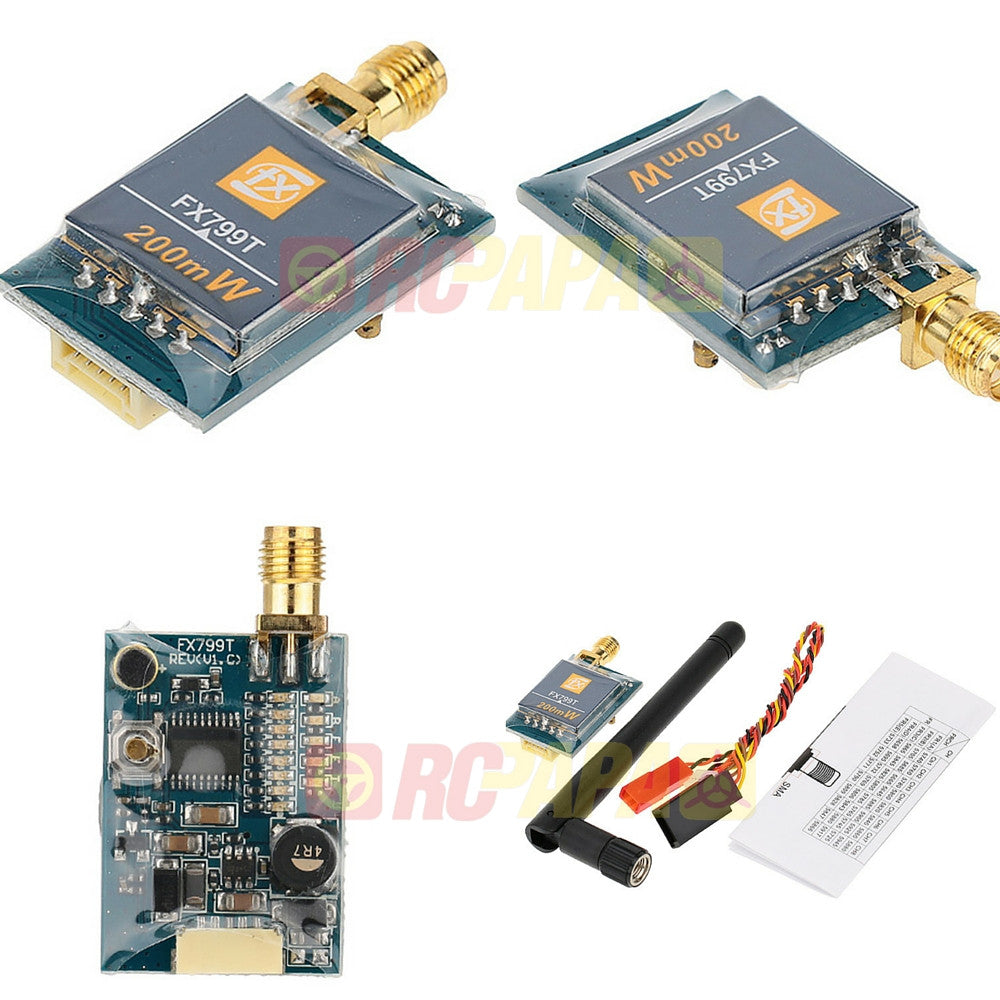

FXT FX799T 200mW 5.8GHz 40CH VTX Video Transmitter with Raceband (SMA) - RC Papa

FXT FX799T 200mW 5.8GHz 40CH VTX Video Transmitter with Raceband (SMA)


** SMA version ***

Package includes :

FX799T 200mw 5.8Ghz 40ch VTX (1pc)

Antenna & wire set

Summary

The FX799T Mini 200mW 5.8GHz 40CH FPV video transmitter is the perfect VTX for FPV racing! The lower 200mW transmission power means more pilots can fly together without overpowering each other on close frequencies. The FX799T has 40 channels including the new Raceband frequencies.

Raceband transmitters are fully compatible with FatShark and ImmersionRC receivers. The Tx includes a 5v output to power FPV cameras and an on-board microphone to transmit audio to your receiver.

The FX799T features an easy to use single button, LED interface. It also comes with a clean pre-wired harness, and only weighs 7.5g! It stays cool to the touch during operation, so you don't have to worry about it overheating in a crash.

Features :

40 channels: Covers 5 Bands

Intuitive and easy to use button and LEDs for frequency selection

Provides 5v power output for FPV cameras

Small sized and light weight

Transmitter frequency: 5658-5925MHz with 200mW power output

Transmitting distance > 1000m (open area)

SMA Antenna connector

Dimensions: 32*22*9mm (not including SMA adapter)

On board microphone

Spec :

Antenna connector : SMA
Module : Wideband FM Module
Video Format : NTSC / PAL
Output Impedance : 50 Ohm
Output Power : 22~24dBM
Channel : 40CH
Operating Voltage : 12V (7V~20V)
Current Consumption : 260mA
Operating Temperature : -10~85 degrees
Video Band Width : 0~8mhz
Audio Carrier Frequency : 6.5MHz
Video Input Level : 0.8~1.2 Vp-p
Video Input Impedance : 75 Ohm
Audio Input Level : 0.5~2.0 Vp-p
Audio Input Impedance : 10K Ohm
Dimension : 31mm x 22mm x 8mm
Weight : 7.5g (without antenna)

FX799T 600mW Video transmitterFX799T 600mW Video transmitter
