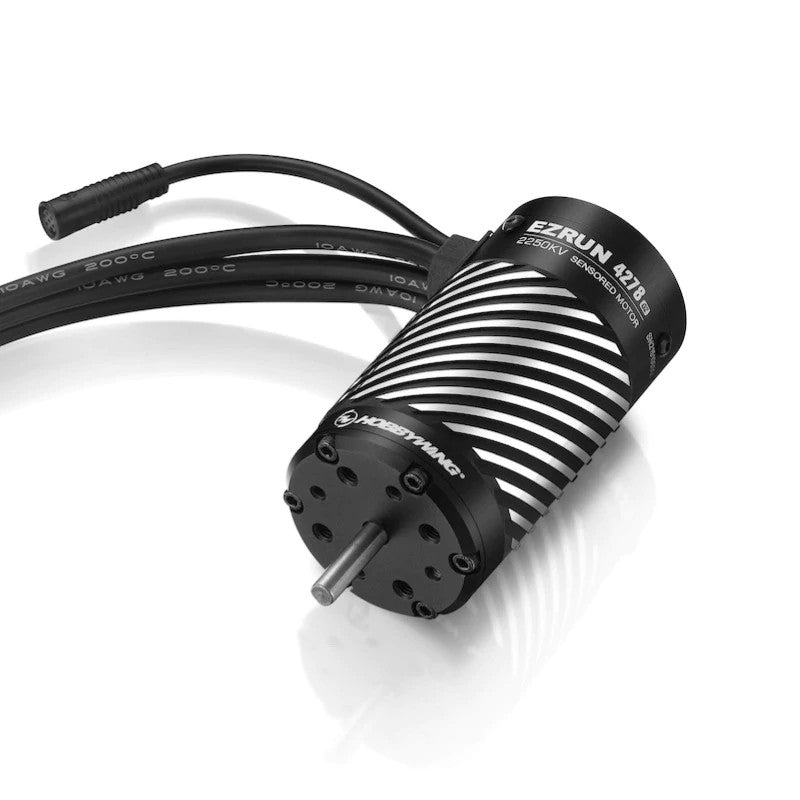

Hobbywing EZRUN MAX8 G2 Motor 4278 for 1/8 RC Truck Crawler
EZRUN MAX Motor Series for 1/8th
- Advanced Sensored brushless technology
- Waterproof, advanced sensored motor
- Designed for SPEED & POWER
- Aggressive Launch
Specification
|
Model |
EZRUN 4268 SD | EZRUN 4278 SD |
| PN | 30402751 | 30402800 |
| Pole | 4 | 4 |
| KV(No-load) | 2500KV | 2250KV |
| R. (Ω) | 0.0065Ω | 0.0048Ω |
| Current No-load（A） | 4.8A | 5.0A |
| Motor D.&L（mm） | 42mm / 68mm | 42mm / 78mm |
| Shaft D.&L of the projecting part（mm） | 5mm / 18.5mm | 5mm / 18.5mm |
| LiPo(S) | 3-4S Lipo | 3-6S Lipo |
| W (g) | 355g (no wire） | 455g (no wire） |
| Applicable | 1/8 off-road，1/10 truck、crawler | 1/8 truck, crawler |
| Best match with | MAX 8 G2 ESC | MAX 8 G2 ESC |
