TBS Team BlackSheep Tracer SIXTY9 VTX & Receiver AIO board

TBS Team BlackSheep Tracer SIXTY9 VTX & Receiver AIO board


FEATURES:

  • Integrated video transmitter control with long range and (team-)race functions
  • Dedicated low-noise power supply for receiver and video transmitter
  • Sleek 20x20 mounting form factor
  • Plug&play connection and solder pads connectivity

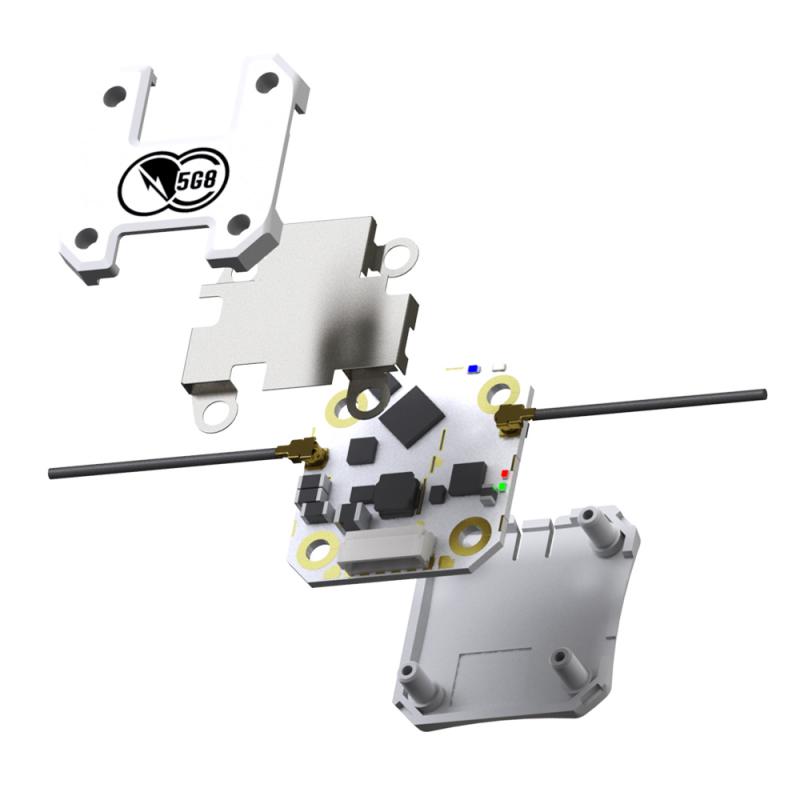

  • 3 different mounting flavors, RF tin shields, and other accessories included
  • High power analog adjustable video transmitter (up to 1W with perfect cooling)
  • 5V regulator bulti-in, takes up to 6S

SPECIFICATIONS

CRSF V3 ready
Weight 4.1g (board only)
Antenna ports 1x video transmitter, 1x R/C receiver
Size 24mm x 24mm
Input voltage 6V - 25V (2-6S)
Requires Firmware V4.62 and above

INCLUDES

  • 1x TBS Tracer Sixty9
  • 1x TBS Tracer Immortal-T antenna
  • 1x u.FL to SMA mount (for VTx)
  • 1x 30x30 heatsink / case
  • 1x 20x20 heatsink / case
  • 1x optional tin-shield (for added low-noise tolerance)
  • 1x JST-SH x 9 connector

What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

Introducing the TBS Tracer Sixty9, a VTx and receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20x20, but we do incldue adapters for your 30x30 stacks, and a plastic case for mounting the unit to your frame - without any stacking necessity.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
