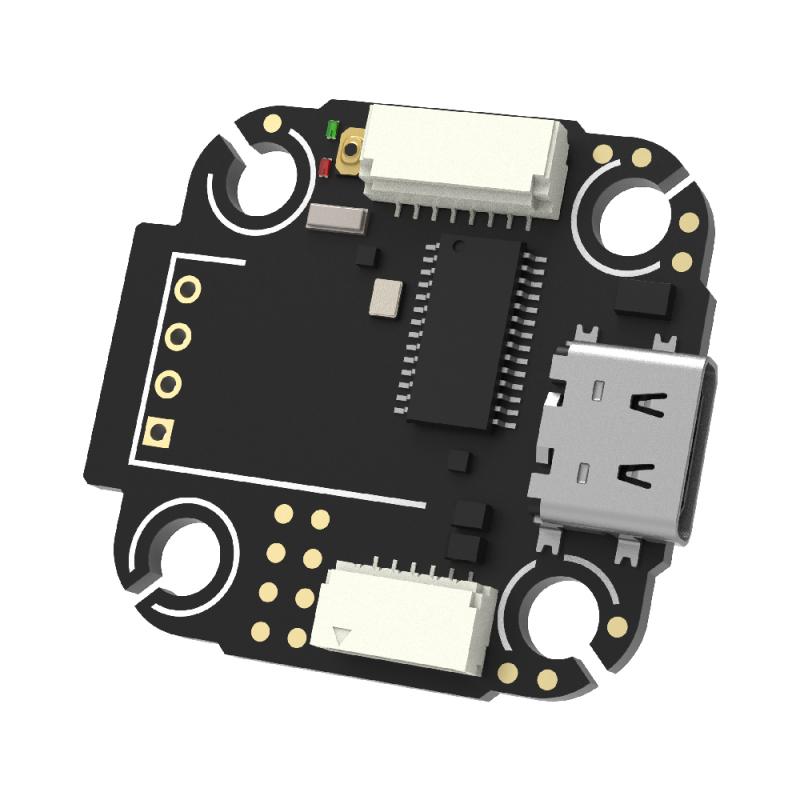

TBS Team BlackSheep Lucid Pro FC Flight Controller

TBS Team BlackSheep Lucid Pro FC Flight Controller

The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

The TBS Lucid Flight controller is a 20x20 masterpiece that is built for the Lucid flight stack, but compatible with all 20x20 ESCs. It is similarly designed for the TBS Crossfire & TBS Tracer ecosystem, but will work with any radio receiver - we don't judge :)

There are plug & play connectors for the DJI O3 digital system and 4in1 ESCs, following the Betaflight connector standard. The solder pads for auxiliary devices are designed and arranged to be easy to solder and logical for installation in your favorite drone frames, such as the TBS Source One.

For the professional pilot, a MPU6000 (Pro) variant is available (those who know, will know), while the ICM-42688P (Freestyle) based version offers a state-of-the-art gyro solution at a better price.


MCU AT32F435RMT7, 288MHz
Gyro MPU-6000
Motors 4 motors, with telemetry and current sensor
BEC 9V, 2.5A. 5V 2A
Blackbox 8M
Input 3S-6S
Size: 31mm*29mm
Mounting 20mm*20mm
Weight 4.51g


Default/recommended port assignment:

  • UART2: ESC Telemetry
  • UART3: DJI O3 Air Unit
  • UART4: DJI O3 SBus
  • UART5: CRSF Rx
  • UART7: GPS
  • UART8: Smart Audio


  • TBS Lucid 20x20 FC
  • FC-to-ESC cable (plug & play)
  • DJI O3 cable (plug & play)
  • 4pcs M3 rubber dampers
  • 4pcs M3x8 screws
