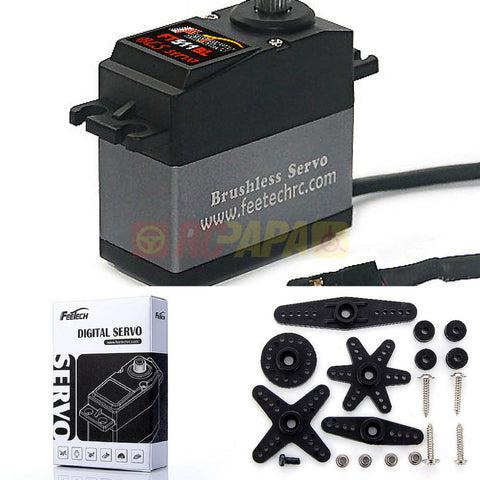

FeeTech FT511BL High Speed Brushless Digital Servo

Package Includes :

FeeTech FT511BL Brushless Digital Servo x1

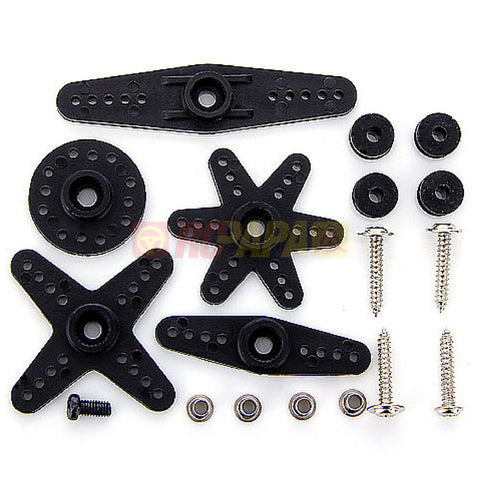

Servo Arm Set x1

FT511BL is FEETECH High Speed Brushless Digital Servo. This is our latest servo. It will be reduce the working current when work at stall torque over 10 second, that will the best to protect the servo burned off.

This servo is used in cars, boats, robots or where standard servos are used. This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering approximately 2A for each servo.

Features :

- Standard size two ball bearing high torque brushless digital servo

- One million times life potentiometer, high quality brushless motor

- High quality anti-interference cable (Like S-Bus Cable)

- Waterproof design

- For high speed applications requiring a standard size servo

- Universal connector fits Futaba, Hitec, JR, KO Propo

- Standard digital Titanium gears servo 2BB

- Brushless motor, Aluminium middle hull

- Operating Voltage: 4.8~6V

- Dead band width: 2usc

- Interface: (like JR)

Spec :

Dimensions: 40.2 x 20.0 x 38.6 mm

Weight: 59 g

Operating Speed :

0.09sec/60(4.8V)

0.07sec/60(6V)

Stall Torque :

12.8kg.cm/178.1 oz.in(4.8V)

15.8kg.cm/219.8 oz.in(6V)

Operating Voltage: 4.8V~6V

Control System: Digital

Direction: CCW

Operating Angle: 120degree

Required Pulse: 900us~2100us

Bearing Type: 2BB

Gear Type: Metal

Motor Type: Brushless

Connector Wire Length: 30 cm
