Futaba S3003 Standard High Torque Servo - RC Papa

Futaba S3003 Standard High Torque Servo

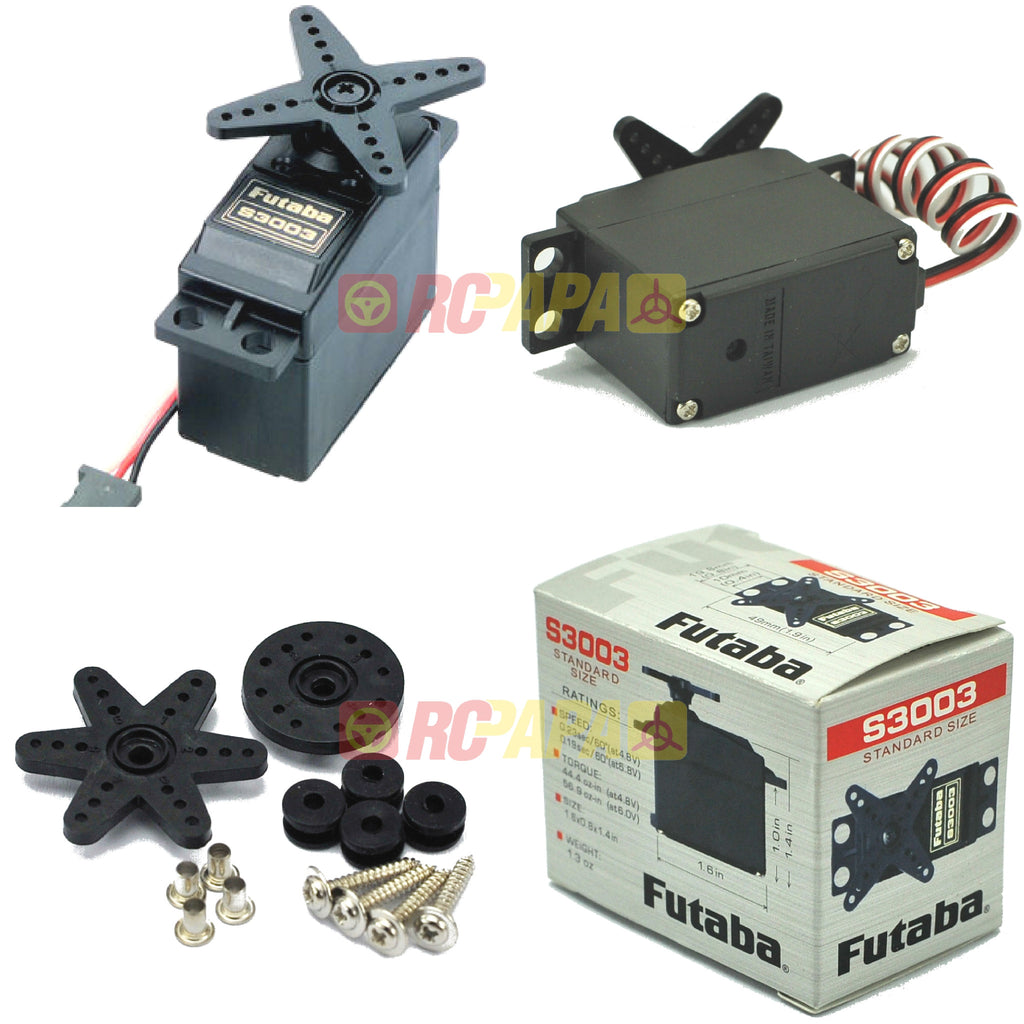

Package includes :
Futaba S3003 analog servo (1pc)

Accessories :
- One S3003 standard servo with preinstalled Xshape servo horn FUTM0031
- Four brass eyelets
- Four Black rectangular rubber grommets (FUTM2348)
- Four servo mount screws
- One servo wheel 1-3/8 (35mm) in diameter
- One X-shape servo arm 1.5 (38mm) across
- One star shaped arm 1-1/4 (32mm) across
- Nylon gears

100% Genuine & Authentic, Made in Taiwan.

Control System: +Pulse Width Control 1520usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.23sec/60 degrees at no load
Operating Speed (6.0V): 0.19sec/60 degrees at no load
Stall Torque (4.8V): 44 oz/in. (
Stall Torque (6.0V): 56.8 oz/in. (
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
Current Drain (4.8V): 7.2mA/idle
Current Drain (6.0V): 8mA/idle
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Bearing Type: Plastic Bearing
Gear Type: All Nylon Gears
Connector Wire Length: 12"
Dimensions: 1.6" x 0.8"x 1.4" (41 x 20 x 36mm)
Weight: 1.3oz. (37.2g)

Futaba S3003
