Features

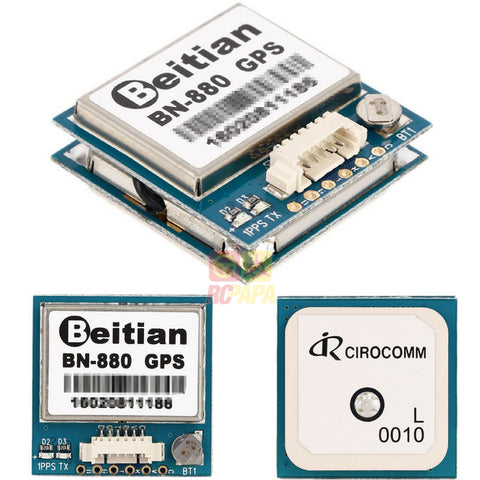

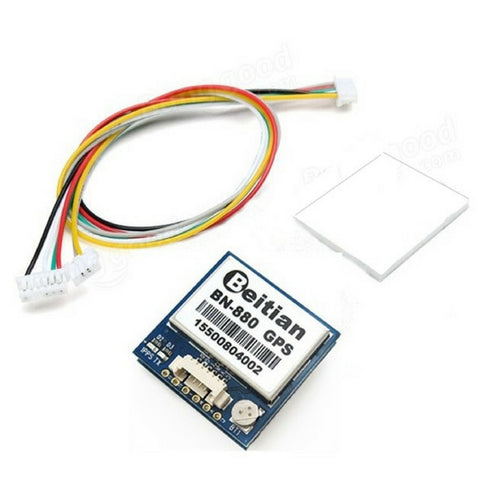

GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat
Specification
Consumption: Capture 50mA@5V
Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel: 72 Searching Channel
Receiving Sensitivity
Trace -167dBm
Capture-148dBm
Positioning Time
Cold Start: avg26s
Warm Start: avg25s
Hot Start: avg3s
Level Positioning Precison: 2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precison:0.1 m/s (Without Aid)
Acceleration Precison:0.1 m/s (Without Aid)
Dynamic Characteristics:
Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:
UART Port:TXDA and RXDA
Support Rate: 4800bps to 115200bps,Default 38400dps
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+85℃
Size:28mm x 28mm x 10mm
Weight:10g
The Module’s Pins:SDA,GND,TX,RX,VCC,SCL
