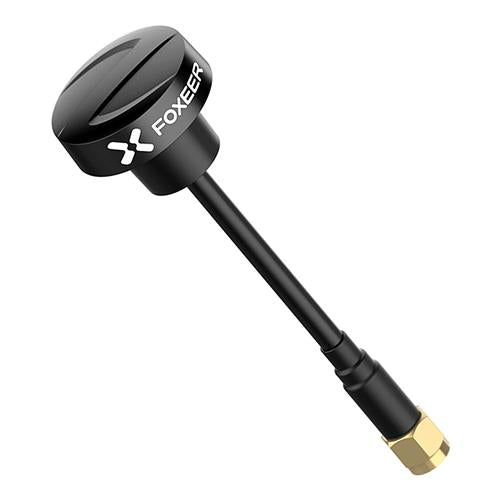

Foxeer Pagoda Pro 5.8G 2dBi RHCP FPV Antenna
Package included
1 x Foxeer Pagoda Pro 5.8GHz 2dBi RHCP FPV Antenna
1 x Foxeer Pagoda Pro 5.8GHz 2dBi RHCP FPV Antenna
Specification
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Gain : 2dBi
Radiation efficiency: 95%
Polarization: RHCP
Weight: 10g
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Gain : 2dBi
Radiation efficiency: 95%
Polarization: RHCP
Weight: 10g
