FXT FX797T 3in1 25mW 5.8GHz 40CH VTX and Micro FPV Camera - RC Papa

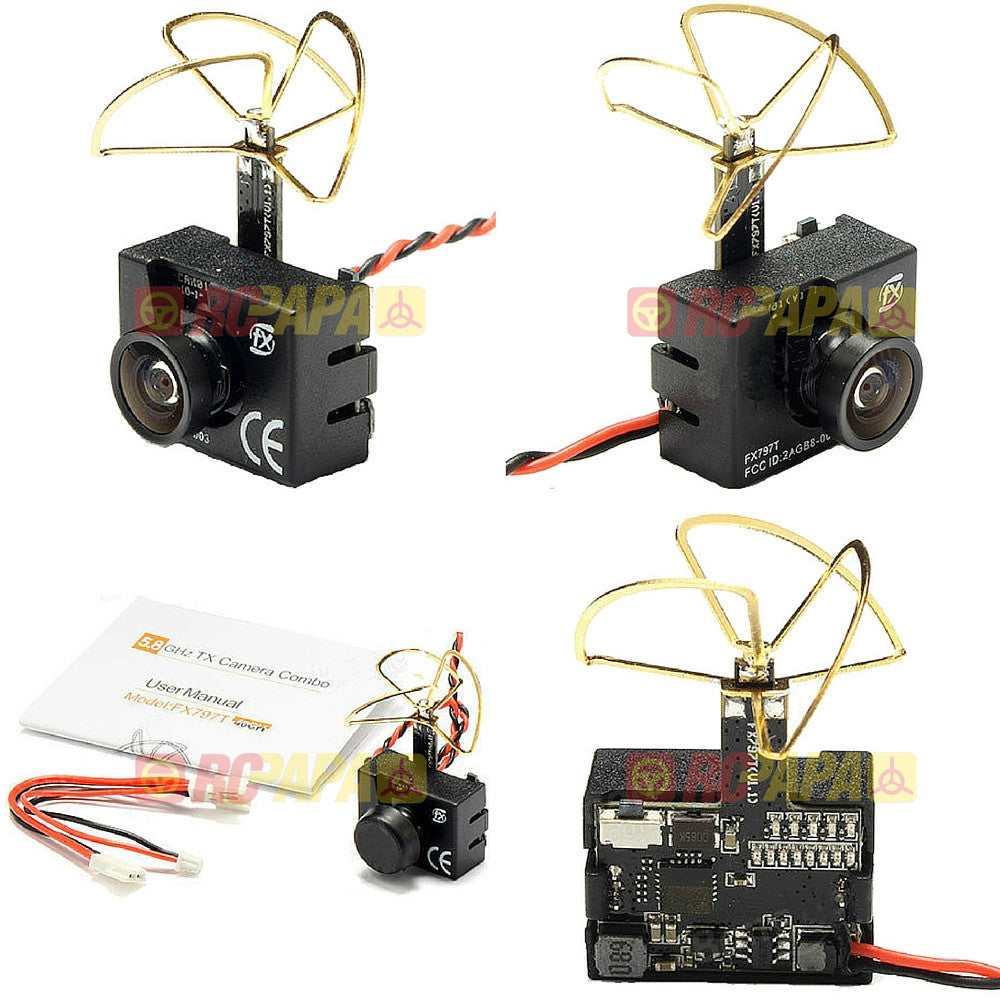

FXT FX797T 3in1 25mW 5.8GHz 40CH VTX and Micro FPV Camera


Package Included:

1x FX797T 5.8G 25mW Transmitter With 600TVL Camera and Antenna

1x manual

Features :

Micro Size and Light weight

Easy installation for racing drone

Five bands 40 channels with Raceband

Button Control Instead Of Switch

Spec :

Output power: 25mW

Input power: 2.5–5V

Current Consumption: 230mA

AV Output: VGA 640x480 PAL/1VP-P

Camera resolution: 600TVL

Min illumination: 1 lux

Field of view: 120° viewing angle

Antenna dimensions: 20mm X 25mm diameter

Antenna: 3 lobe right hand circular polarized

Video output: NTSC

Frequency: 5.8GHz

Push button operation, long press for band, short press for channel

2 row LED indicators, 5 LED for band, 8 LED for channel

Size: 17x17.5x12.5mm

Weight: 3.4g

FX797T 3-In-1 Ultra Micro Camera 5.8G 40ch Wireless Transmitter
