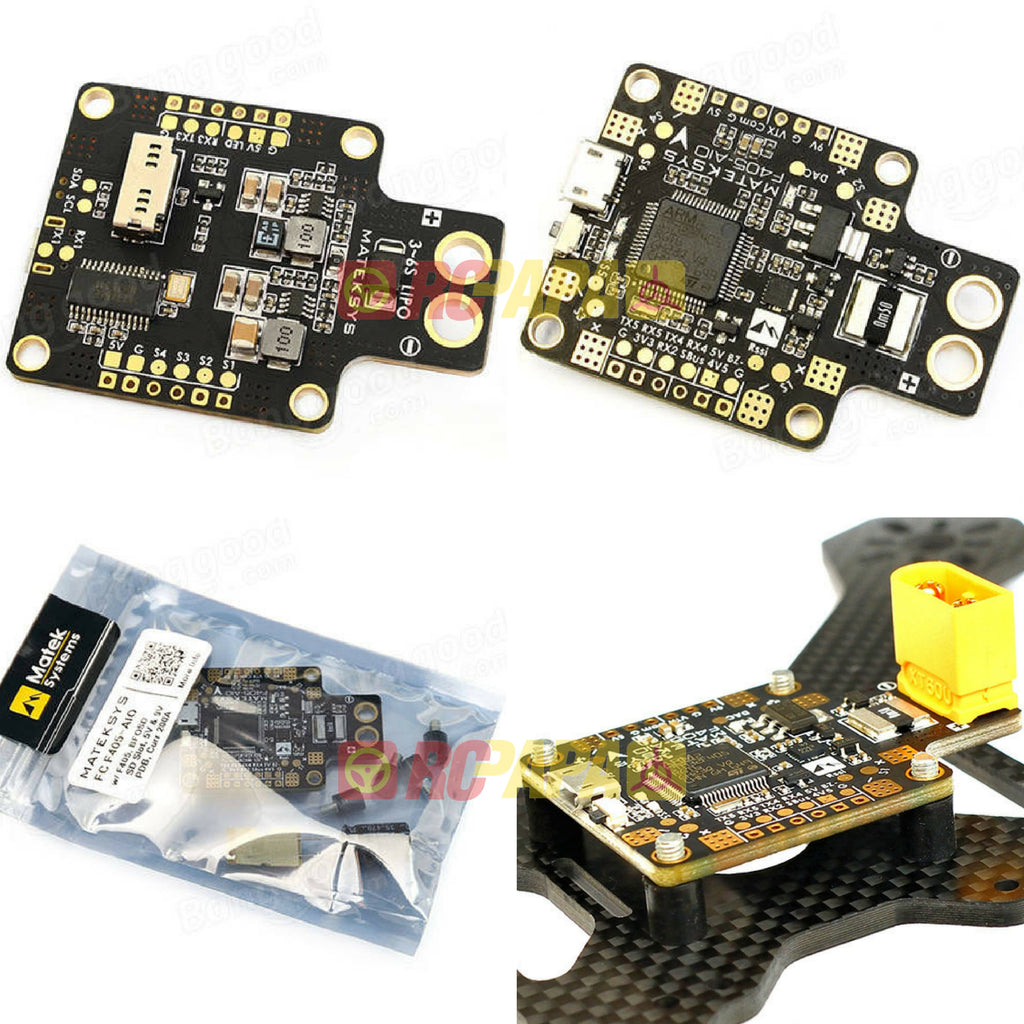

Matek Flight Controller FC F405 AIO All-in-One

US$39.99

FC Specifications

MCU: 168MHz STM32F405
IMU: 32K ICM20602 accelerometer/gyro (SPI)
Max. 32K Gyro update & 16K PID Loop
OSD: BetaFlight OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP, UART1, UART2, UART3, UART4, UART5
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on S5 & S6 optional
Smartaudio & Tramp VTX protocol supported
Spektrum BIND_PIN: RX4
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes

PDB Specifications
Input: 9~27V (3~6S LiPo) w/TVS protection
PDB: 4x30A (Max.4x50A), 6 layers*2oz copper PCB
Dual BEC: 5V 2A & 9V 2A
LDO 3.3V: Max.300mA for Spektrum RX
Current Sensor 200A (Scale 165)
Battery Voltage Sensor: 1:10 (Scale 110)
2x LEDs for FC STATUS (Blue, Red)
6x PWM / DShot outputs without conflict
5x UARTs
1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
1x pair I2C1 pads (for INAV firmware only)
1x Side-press button for BOOT(DFU) mode
36x51mm PCB with 30.5mm mounting holes & XT60 socket
12g

w/ 1x Rubycon ZLH 35V/470uF (Low ESR)
w/ 4x M3 Anti-vibration Standoffs
w/ FR4 PCB Plate 36*36*1mm

** Note **
For XSR/X4RSB user, please upgrade your RX to latest firmware version to enable PID tuning and Smartaudio VTX tuning. Should you have any question, please email us for help.
