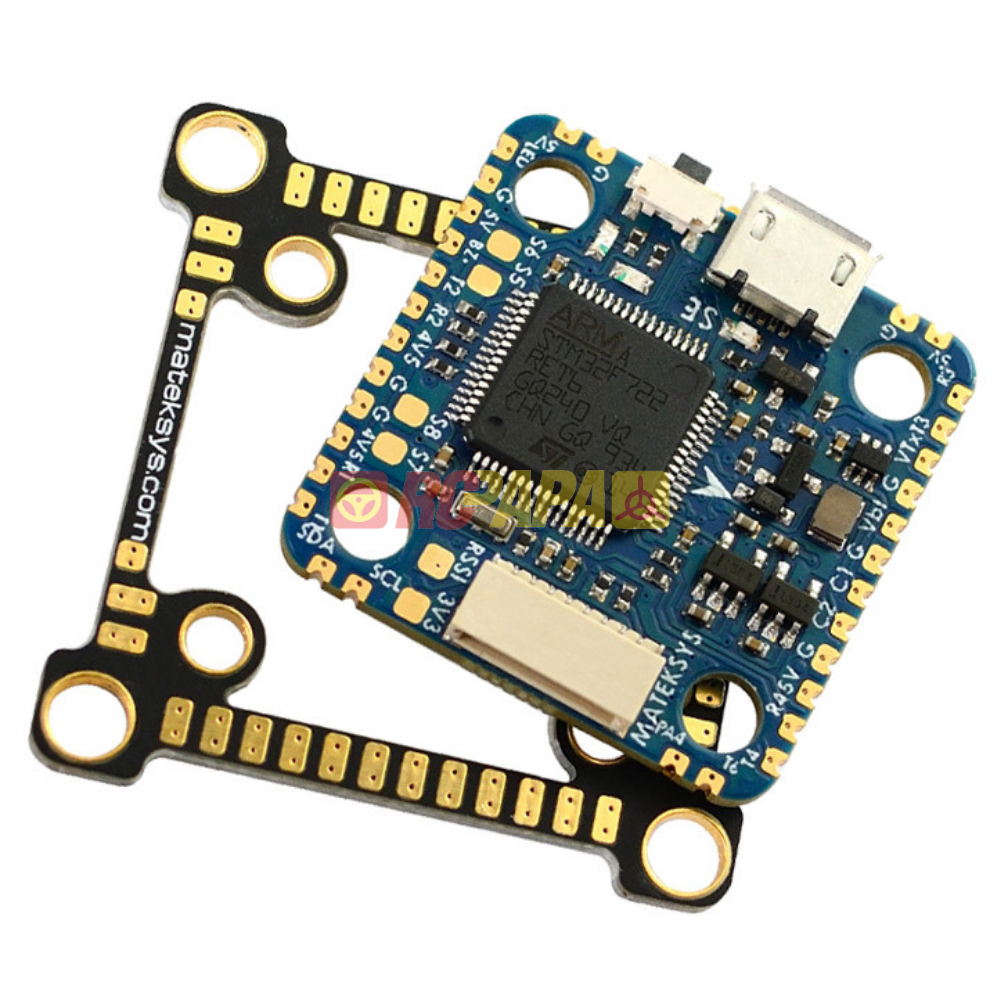

MatekSys Flight Controller F722-MINI SE FC
Mateksys Flight Controller F722-MINI SE
Including
1x FC F722-miniSE
1x 20mm to 30.5mm conversion plate
6x Silicon grommets M4 to M3
6x Brass grommets M3 to M2
1x SH1.0_8pin cable 5cm
2x SH1.0_8pin connectors
FC Specifications
MCU: 216MHz STM32F722RET6
IMU: MPU6000 (SPI)
OSD: AT7456E (SPI)
Baro: Infineon DPS310 (I2C)
Blackbox: 32M-byte Flash memory (SPI)
5x Uarts (1,2,3,4,6) with build-in inversion
1x Softserial supported
8x Dshot/Proshot/oneshot outputs
1x I2C
1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
Dual Camera image switchable via AUX (modes tab-user2)
Convertible 20mm to 30.5mm mounting
Camera control: Yes
Smartaudio & Tramp VTX protocol: Yes
DJI OSD: Yes (any spare Uart Tx & Rx)
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Additional ADC for INAV analog airspeed
Power
Input: 6~36V (2~8S LiPo)
BEC: 5V 2A
LDO 3.3V: Max.200mA
Battery Voltage Sensor: 1:10 (Scale 110)
No Current Sensor built-in, supports external current sensor of PDB/4in1
Firmware
INAV target: MATEKF722mini
BetaFlight unified target: MATEKF722mini(MTKS)
BetaFlight legacy target: MATEKF722SE
Physical
Mounting
20 x 20mm/Φ3mm with Silicon Grommets
20 x 20mm/Φ2mm with Silicon & Brass Grommets
30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
Dimensions: 28 x 28 mm
Weight: 5g
