T-Motor F40 2500KV Brushless Motor for FPV Race (Set of 2)

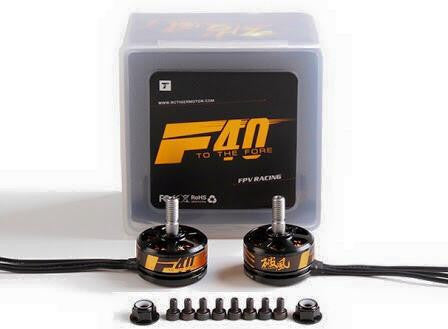

Package includes :

T-Motor F40 2500kv Brushless Motor x 2

Locking Nuts x 2

Socket Head Screws x 8

Summary

The F40 FPV Series Motor has been design and built specifically for FPV Racing. Using a steel shaft and a unique structural design to prevent bending and deformation on crashes, these motors are built to take a punch. They are very quick and have fast response. Also uses a creative way of heat dissipation, reducing 15% more heat than other motors. The F-Series FPV motors by Tiger Motors are some of the best FPV racing motors around.

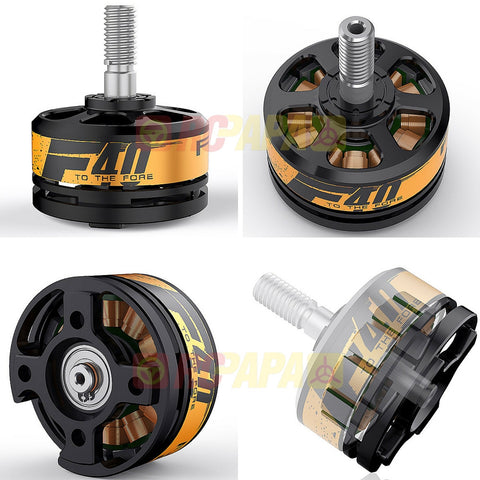

T-Motor F40

T-Motor F40T-Motor F40T-Motor F40T-Motor F40T-Motor F40T-Motor F40

Specifications :

KV : 2500

Configuration : 12N14P

Stator Diameter : 22mm

Stator Length : 5mm

Shaft Diameter : 4mm

Motor Dimension (Dia.*Len) : Φ27.5×17.7mm

Weight (g) : 27g(Excluding Cable)

ldle current(10)@10v(A) : 1A

No.of Cells(Lipo) : 3-4S

Cable length : 100mm
